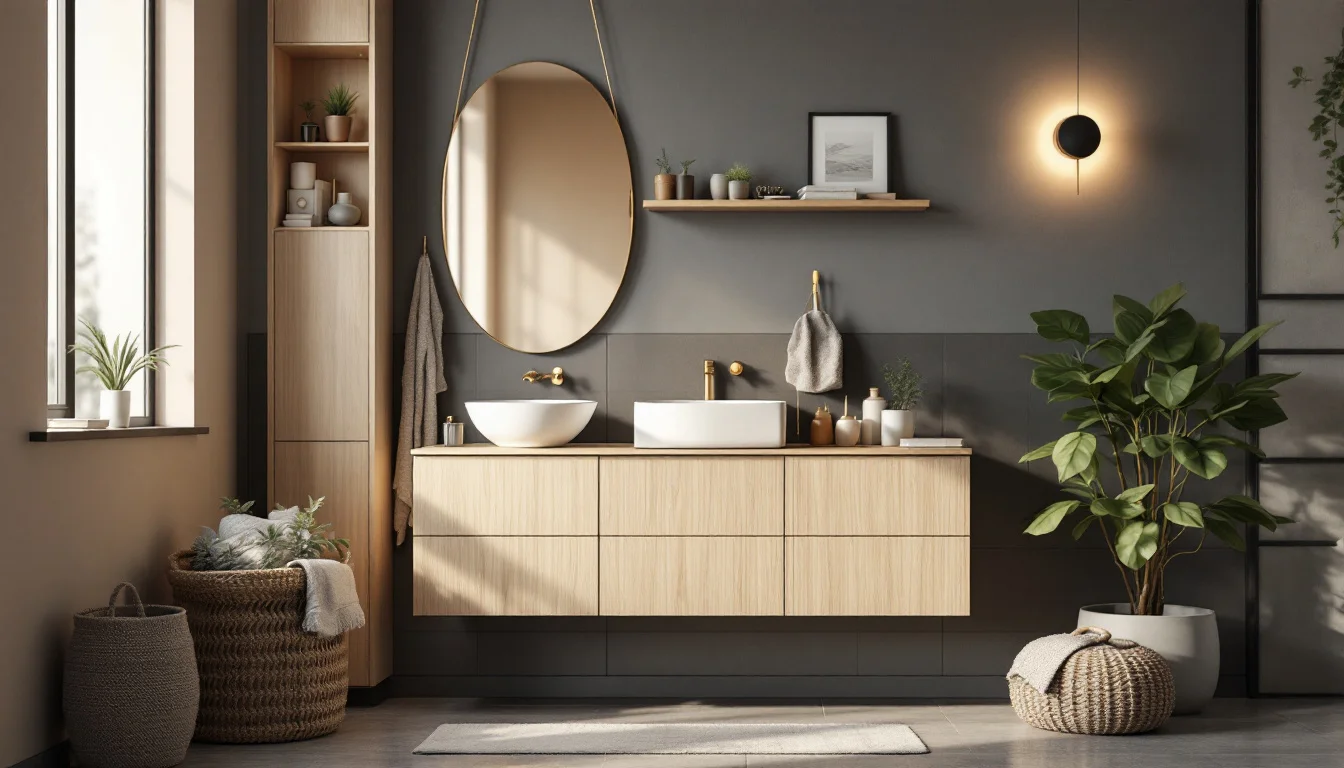

Floating Vanities: Proper Installation
Designing a modern bathroom often involves clean lines and clear floor spaces. While a floating vanity perfectly meets this aesthetic expectation, it conceals a demanding technical reality. Anchoring such a fixture is far more than mere interior decoration. It represents a genuine structural challenge, particularly when existing walls are lined with non-load-bearing hollow partitions.
A haphazard installation, relying on standard wall plugs in thin panelling, exposes users to the risk of a sudden collapse. Before drilling a single hole, it is crucial to understand the mechanics of the loads at play.
Key installation points:
- The major difference between vertical shear stress and the pull-out force that rips out fixings.
- The importance of reinforcing the mounting behind the wall casing, often by anchoring directly into the masonry (unless mounting on a suitably dimensioned timber frame).
- Specific physical solutions for bridging a wall cavity without subjecting the steel hardware to bending stress.
Statics and mechanics: why is your vanity trying to tear down the wall?
Understanding the physics of anchoring requires deconstructing the forces applied to the structure. According to technical data documented in the "Hanging a 120cm bathroom vanity on chipboard" thread on Bricozone.be, the load of a 120 cm floating double vanity is estimated at around 80 kg by the homeowner involved. This figure represents the bare unit, excluding drawer contents and before any external interaction.
Leverage and pull-out force
However, the real difficulty lies not in this static weight. The geometry of a vanity shifts its centre of gravity forward into the room. Consequently, the upper fixings of a floating cabinet are subjected primarily to pull-out forces (tension). Shear force (downward sliding along the wall) becomes secondary compared to the powerful pull-out leverage.
A scenario shared on the forum illustrates this dynamic perfectly: a child leaning on the edge of the vanity instantly creates a powerful lever effect against the back wall. To counter this stress, the screws must be long enough to ensure the wall plugs are deeply anchored in the load-bearing masonry.
Bending stress in the void
The balance is compromised when the mounting does not sit flush against the masonry. Bridging an air gap destabilises the screw. Deprived of lateral support over its exposed length, the shaft bears the cantilevered load directly. The initial pull-out stress transforms into a bending force on the steel. A screw yielding under this strain can lead to the cabinet breaking loose entirely.
The false wall trap: when wall cavities cause steel to bend
It is tempting to believe that a seemingly robust false wall provides a sufficient gripping base for heavy furniture. The cited case study contradicts this misconception in the context of stud wall mounting. The wall in question consists of existing masonry, timber battens, moisture-resistant chipboard, and PVC tiles. In such a configuration, neither the chipboard nor the battens can handle the load of a floating vanity.
The structural panel illusion
Although P5-grade chipboard is designed to resist moisture and support distributed loads, its internal cohesion fails against massive, localized pull-out forces. The battens and chipboard panelling of a false wall are not structural—no more so than basic plaster.
The creation of a critical void
The very geometry of this wall creates a problematic gap. The combined thickness of the batten and chipboard generates a significant void between the solid concrete and the back of the vanity. This gap compromises the effectiveness of standard fixings: the screw is left suspended in this hollow space, enduring bending stress, while the front panel serves only an aesthetic role under the cabinet's weight.
Three strategies for reaching the load-bearing block
Safely bridging a false wall relies on a principle highlighted by the DIY community: you must anchor directly into the concrete blocks with high-quality 8 mm wall plugs. To do this, it is absolutely vital to avoid hitting a void, such as a hollow mortar joint or the cellular core of a block.
Comparison of deep anchoring methods
This table analyses the suitability of each reinforcement technique aimed at reaching the masonry:
| Fixing strategy | Implementation complexity | Tolerance to wall voids | Load transfer capacity |
|---|---|---|---|
| OSB and hammer-in fixings | Intermediate | Low | High |
| Chemical anchoring (resin) | Complex | Very high | Maximum |
| Load-spreading board | Simple | Moderate | Excellent |
Mounting strategies in detail
Three approaches can overcome this physical bridging issue.
- Solid through-framing: A recommended solution is to replace the chipboard panel with 18 mm marine plywood or OSB 3 (or even OSB 4). The method involves keeping the battens secured against the block wall. A horizontal batten is added at the exact height of the fixings, and you drill right through this stack (plywood/OSB, horizontal batten, and brick) to insert long hammer-in fixings. Their length must be calculated by adding the thickness of the false wall to the minimum required anchoring depth in the load-bearing material.
- Resin bridging: Chemical anchoring, using a threaded rod set directly into the concrete block, is cited as the strongest fixing method, provided the vanity's brackets can accommodate this type of bolting. The presence of the batten gap, however, makes its installation more intricate.
- Load spreading: Another alternative relies on a horizontal board measuring 1200 x 150 x 22 mm, secured at multiple points into the concrete. The vanity is then firmly attached to this dense timber relay.
Mounting rails and offset steel brackets
When traditional deep drilling proves too difficult or the load-bearing wall has localized weak spots, other methods can help dissipate the pull-out forces.
Multiplying the anchor points
A mounting rail fragments the overall load into multiple minute stress points. One testimonial documents a 90 cm solid oak floating vanity with a surface-mounted sink, weighing around 50 kg empty. Supplied with a mounting rail, it was anchored with eight 6 mm screws into an 18 mm plywood panel. This panel was, in turn, attached to a timber frame. The owner confirms the setup was still holding strong after several years. Multiplying the attachment points compensates for a wall surface that would otherwise be too thin to absorb the force through just a few fixings.
Load transfer via offset steel
For extreme situations, under-mounting becomes necessary. One potential reinforcement involves using two custom-welded brackets made from 20x30 mm steel tubing, bolted to the block wall. These brackets support the weight of the vanity unit alongside the original fixings. The vertical downward sections are concealed behind the PVC wall tiles, while only the horizontal arms (about 37-38 cm long) remain visible beneath the cabinet, preserving the floating aesthetic.
A reality check: when is it time to give in and add legs?
Despite the best anchoring engineering, a room's architecture sometimes dictates that full suspension is simply impossible. The mechanical success of heavy furniture absolutely relies on it being flush and immobile against the back wall.
Failure through mechanical play
If the false wall panel isn't entirely rigid—especially if it doesn't contact the block wall evenly—it becomes impossible to tighten the cabinet securely and stop it from shifting. The slightest structural flexibility will cause the entire assembly to flex and strain. Faced with this technical inability to achieve a firm grip, a 100% floating installation becomes hazardous. The only solution is to fit two legs at the front of the cabinet.
The safety compromise
This visual compromise saves the vanity from tearing off the wall. Adding two adjustable legs underneath a floating cabinet is frequently described as a reassuring option by DIY enthusiasts. Several thread participants ultimately opted for this definitive safety measure rather than crossing their fingers and hoping their wall panel would hold.
FAQ on hidden bathroom hazards
Will a heavy vanity hold on a plasterboard wall?
No, standard plasterboard (drywall) or thin panelling generally cannot withstand the pull-out force of a heavy floating vanity with significant leverage. It is necessary to fix directly into the timber frame behind the board or anchor into the load-bearing masonry itself.Which wall plugs should I choose for an 80 kg vanity?
For anchoring into concrete blocks located behind a stud or false wall, it is advisable to use hammer-in fixings—calculating the length by adding the thickness of the false wall to the minimum required anchoring depth—or chemical resin anchoring, depending on the width of the cavity to be bridged. You must avoid drilling into hollow mortar joints or masonry cavities to ensure the fixing expands completely and securely.Conclusion
The longevity of heavy bathroom fixtures is determined long before you even purchase the hardware. Planning to insert massive load-spreading boards and reinforced battens into the framing, even before closing up the false wall, turns a critical installation into a perfectly controlled exercise. Preventative engineering ensures that elegant design isn't achieved at the expense of safety, and significantly simplifies replacing the vanity in the future.
